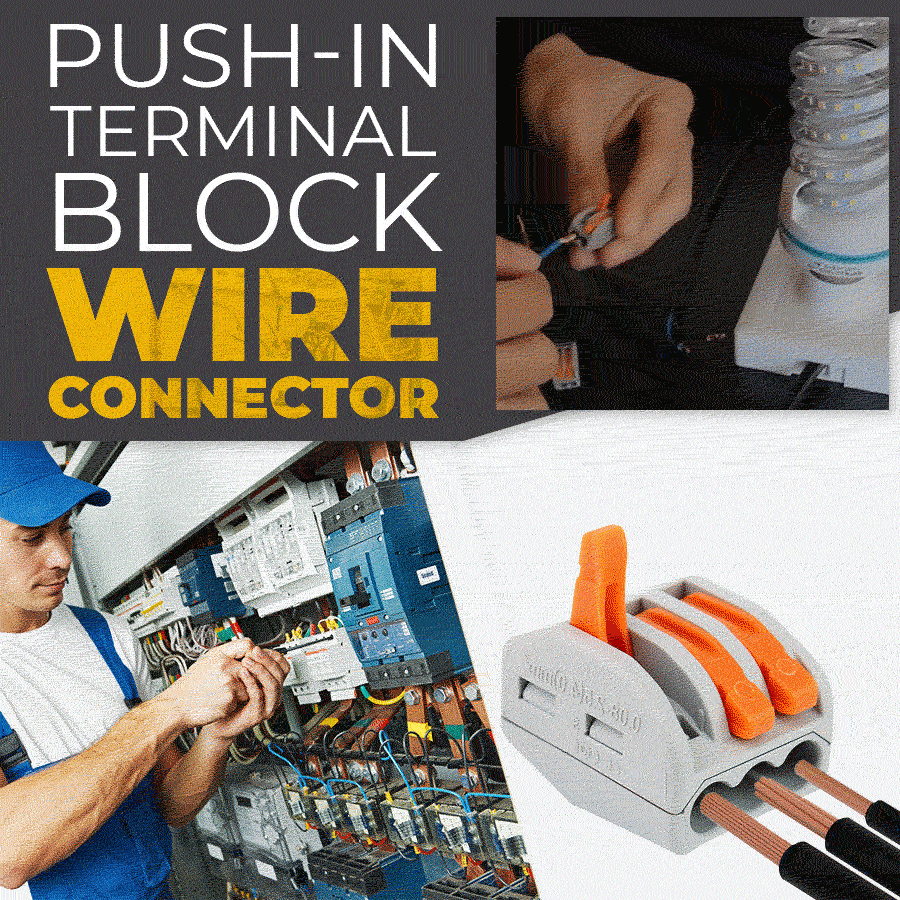

Push-In Terminal Block Wire Connector

SAVE TIME AND COSTS WITH OUR INSTALLATION TERMINAL BLOCKS AND CONNECTORS

Pull the lever up, insert a conductor and push the lever back down – done. Always connected solid, stranded and fine-stranded conductors easily, quickly and safely.

This connector is ready for more and can prove it: now connects conductor cross sections from 28–14 AWG for greater versatility.

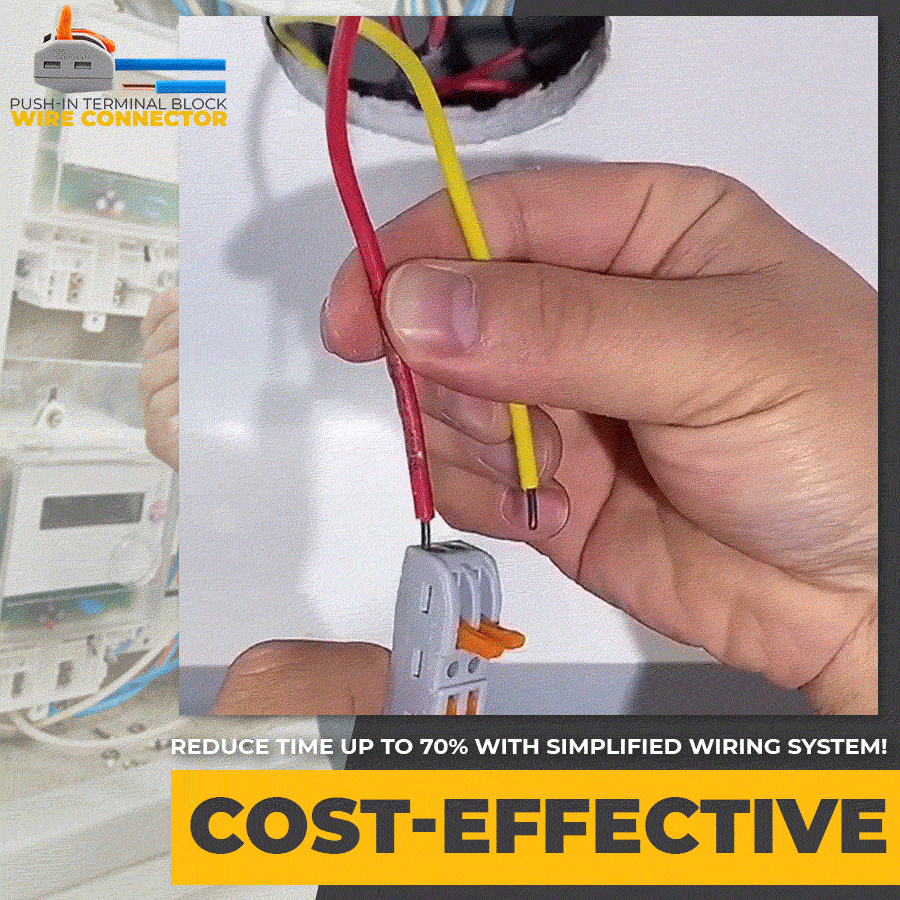

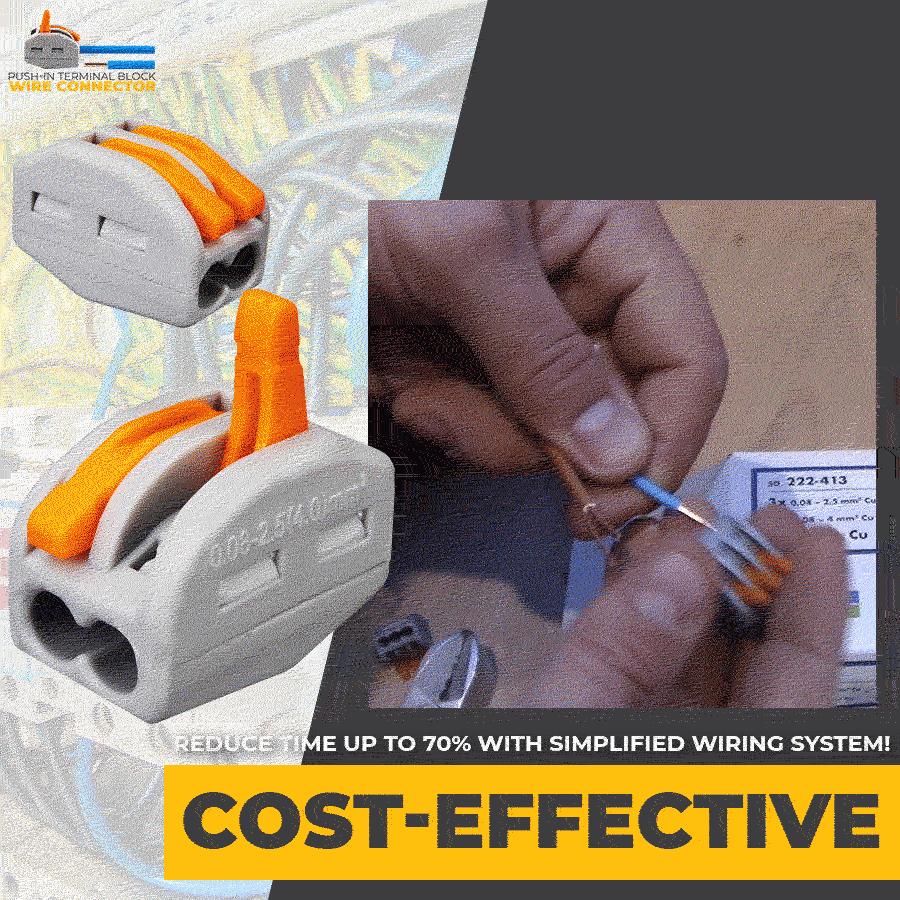

Increase efficiency in installation without compromising on safety. Reduce connection times for solid wires and those with crimped on wire-end ferrules by up to 70 % compared to clamping yoke terminals.

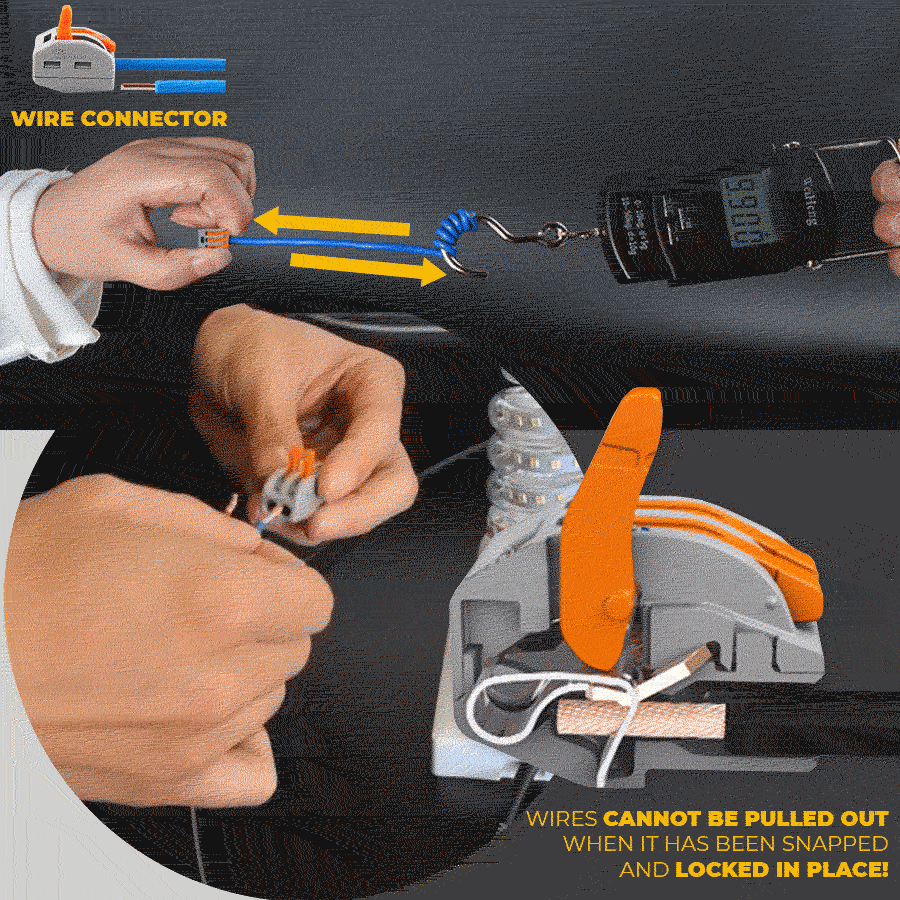

The conductor is simply inserted in the clamping unit to get a safe, gas-tight connection. Even flexible conductors can be connected without tools and trouble.

BENEFITS

Easily terminate conductors up to 2.5 mm^2 (14 AWG)

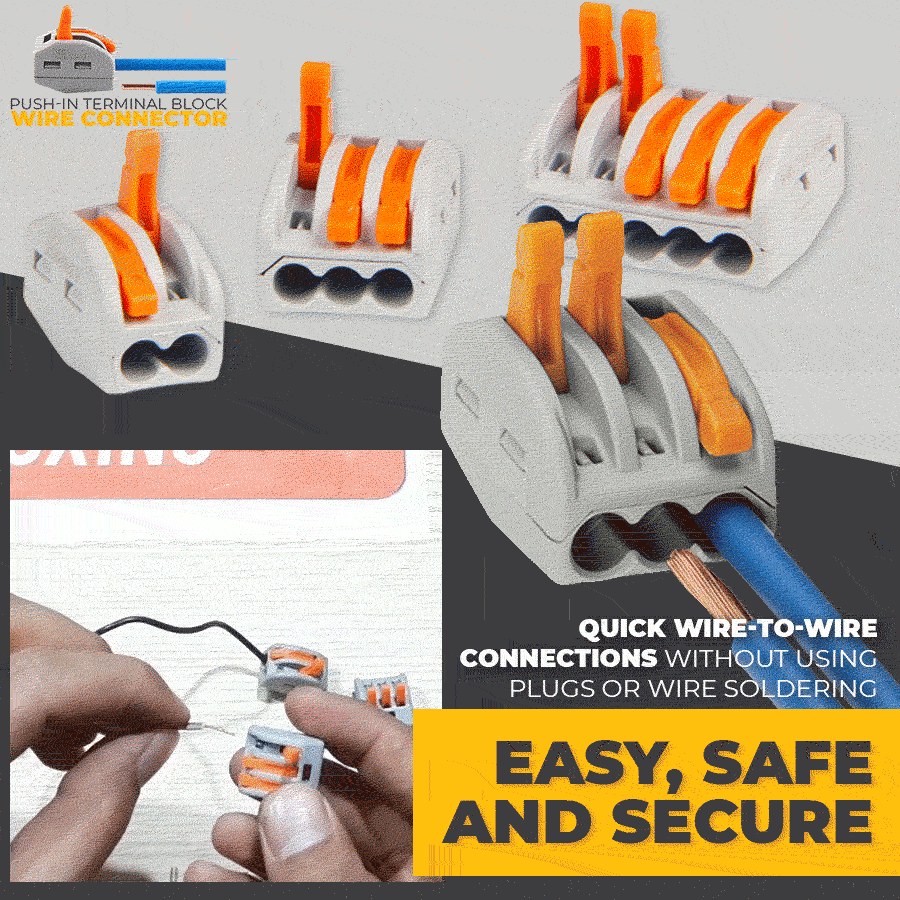

Connect solid, stranded and fine-stranded conductors

Time savings for installers and device manufacturers

Quickly install devices with higher levels of power consumption

Safely install long cable runs with larger conductor cross sections

Lift Lever, Insert Conductor, Close Lever

SPECIFICATIONS

Insulation Material: Modified Nylon (PA66)

Contact Material: Copper

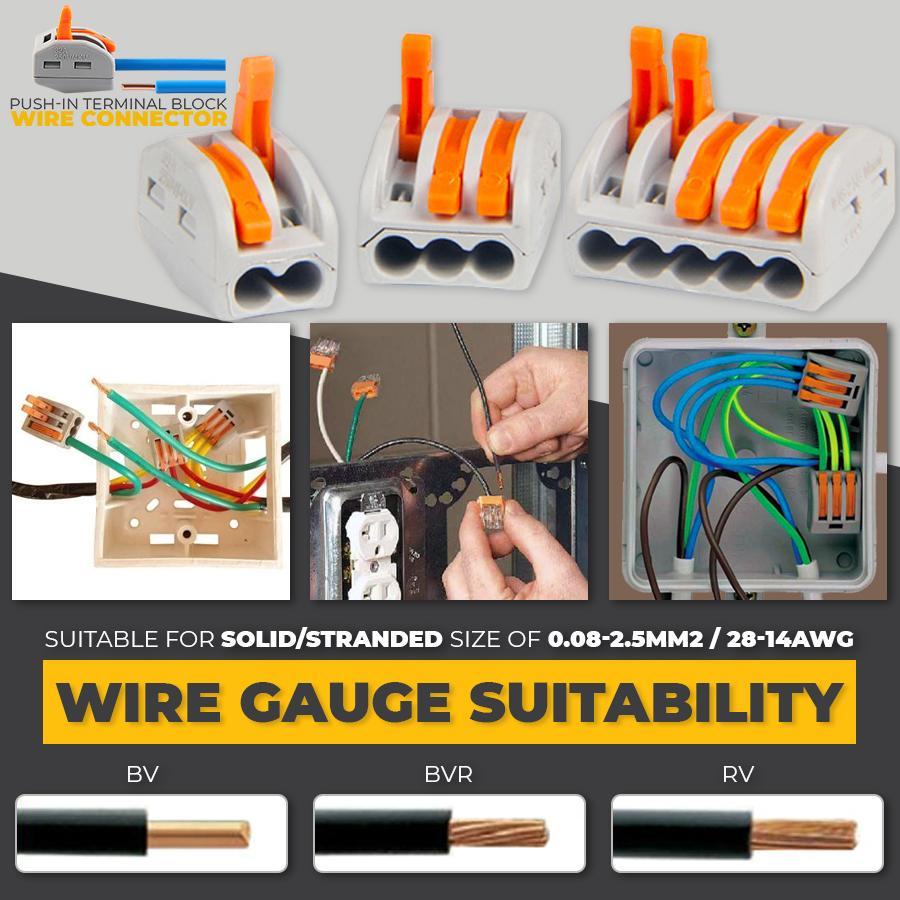

Suitable Wire Gauge: 28 ~ 14AWG (0.08mm^2 ~2.5mm^2) Copper Wire

Rated Voltage: 250V

Rated Current: 24A

PACKAGE INCLUDES

20x / 40x / 60x Push-In Terminal Block Wire Connector
